Unmatched Throughput with Italian Stone Baking — ADPV Adaptive Power — Stackable Up to 3 Levels

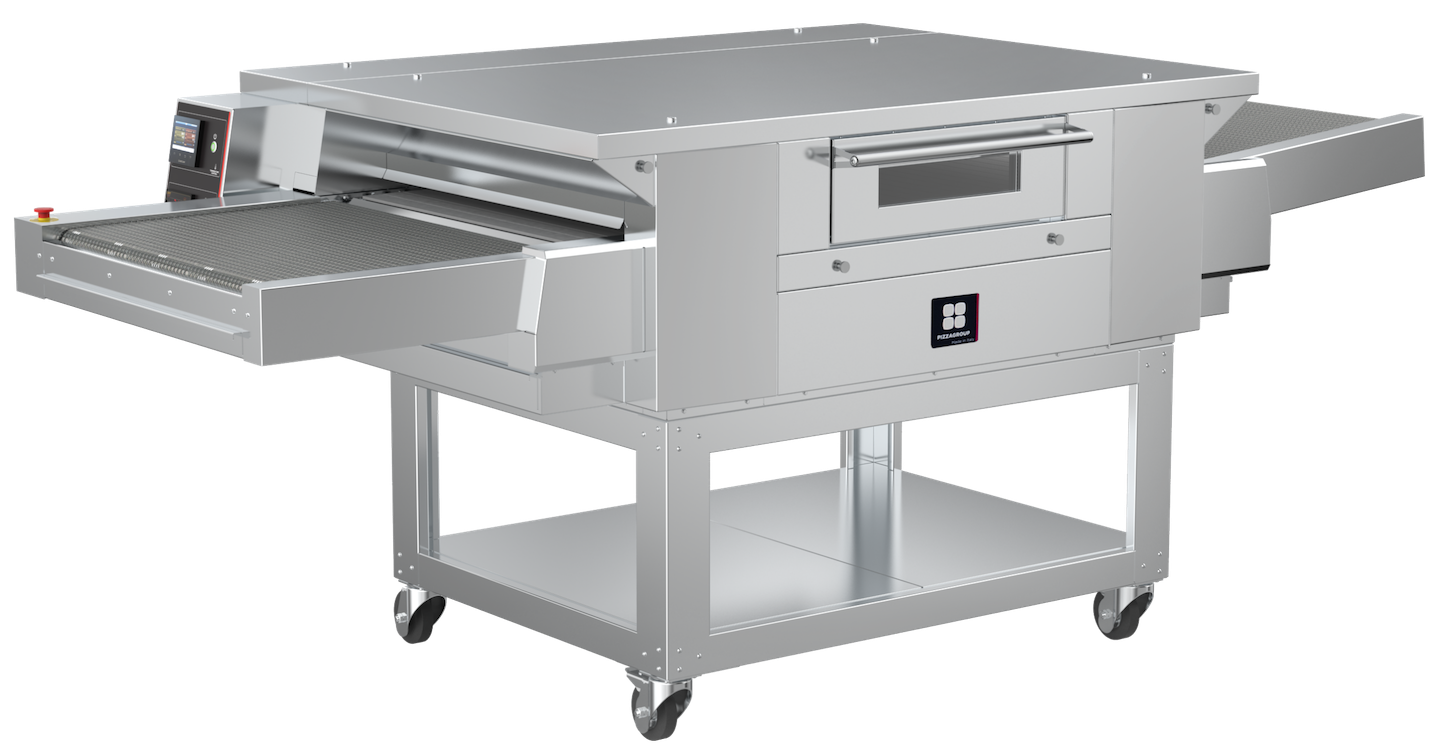

Born from decades of Italian oven-making tradition, the Dragon Conveyor Oven brings together the consistency of automated conveyor baking with the authentic flavor profile that only a genuine refractory stone surface can deliver. Designed and manufactured in Italy, the Dragon is purpose-built for high-demand environments where output volume, product quality, and operational reliability cannot be compromised. Whether you operate a busy pizzeria chain, a stadium concession, a university dining facility, or a quick-service restaurant pushing hundreds of pies per shift, the Dragon is engineered to keep pace with your most ambitious production targets.
At the heart of the Dragon’s performance sits the ADPV (Adaptive Dynamic Power Variation) system — a proprietary technology that continuously monitors and adjusts heating element output in real time. Unlike conventional conveyor ovens that rely on fixed temperature zones, the ADPV system responds dynamically to fluctuations in product load, ambient conditions, and belt speed. When you place a full load of cold dough into the chamber, the system immediately increases power delivery to compensate for the sudden heat absorption, ensuring that every pizza on the belt receives uniform heat regardless of how many items are in the oven at any given moment.
This adaptive approach yields two critical advantages. First, it virtually eliminates the inconsistency that plagues standard conveyor ovens during peak rush periods, when rapid loading can overwhelm fixed-output heating systems and result in uneven bakes or extended cook times. Second, it dramatically improves energy efficiency during lighter production periods, since the system scales down power consumption when full output is not needed rather than running at constant maximum draw. The result is a conveyor oven that bakes with remarkable consistency from the first pizza of the morning to the last order of the night, all while keeping your utility costs in check.
The Dragon’s conveyor belt is composed of genuine Italian refractory stone tiles — the same material used in traditional brick-lined deck ovens across Naples and Rome. These stone tiles absorb and radiate heat in a way that steel mesh or perforated metal belts simply cannot replicate. As the dough passes over the heated stone surface, moisture is drawn from the base of the crust in a controlled, even manner, creating the characteristic crisp bottom and slightly charred spots that define an authentically baked Italian pizza.
Most conveyor ovens on the market use impingement air technology alone, which excels at speed but often produces pizzas with a uniform, almost industrial texture. The Dragon’s stone belt combines the throughput advantages of conveyor automation with the flavor and textural depth of stone-hearth baking — giving you the best of both worlds. Your customers get a pizza that tastes like it came from a traditional oven, and you get the speed and labor efficiency of a fully automated system.
Every Dragon unit comes equipped with a 7-inch full-color touchscreen interface that puts complete control of the baking process at your fingertips. The interface allows operators to set and monitor chamber temperature, belt speed, top and bottom heat ratios, and ventilation parameters — all from a single, intuitive screen. You can save up to dozens of custom baking recipes, enabling one-touch switching between different products such as thin-crust pizzas, deep-dish pies, flatbreads, calzones, and open-faced sandwiches.
The touchscreen also provides real-time diagnostics and maintenance alerts, so you know the moment any parameter falls outside its target range. For multi-unit operations, recipe settings can be transferred between machines to ensure absolute consistency across multiple locations — every Dragon in your fleet produces the exact same product regardless of which kitchen it sits in.
Space is at a premium in most commercial kitchens, which is why the Dragon has been engineered for vertical stacking up to three levels high. A triple-stacked Dragon configuration occupies the same floor footprint as a single unit while tripling your production capacity. This makes the Dragon ideal for operations that need to scale output without expanding their kitchen footprint — simply add another level to your existing stack.
Each stacked unit operates fully independently with its own controls, temperature settings, and belt speed, so you can run different products or recipes on each level simultaneously. The stacking frame is factory-engineered for stability and ease of access, with each level positioned at an ergonomic height for comfortable loading and unloading. The D32 model, with its wider 32-inch belt, can produce up to 780 pizzas per hour in a triple-stack arrangement, making it one of the highest-throughput stone conveyor ovens available in North America.
The Dragon is available in both electric and natural gas configurations across both belt widths, giving you the flexibility to match your fuel infrastructure and operating cost preferences. Electric models deliver precise, zone-controlled heating that is ideal for operations with robust electrical service and those seeking the cleanest possible kitchen environment. Gas models offer the rapid heat recovery and lower operating cost per BTU that many high-volume operators prefer, with BTU ratings engineered to maintain stone temperature even under continuous heavy loading.
Every Dragon Conveyor Oven sold through Gianluca Specialty Imports carries full UL-ETL certification for the United States and Canadian markets, ensuring compliance with all local electrical and safety codes. NSF/ANSI certification confirms that all food-contact surfaces meet North American sanitation standards. For operators looking toward the future, the Dragon is Industry 4.0 ready with optional network connectivity that enables remote monitoring, performance analytics, and centralized fleet management through cloud-based platforms. Track oven utilization rates, energy consumption, and bake consistency across your entire network of locations from a single dashboard.
The Dragon lineup spans two belt widths — 24 inches (D24) and 32 inches (D32) — each available in electric or gas variants. The D24 is ideal for single-lane pizza production and smaller kitchens where space is tight but volume demands are still significant. The D32 accommodates wider products, side-by-side pizza placement, and sheet pan baking, making it the go-to choice for the highest-volume operations. Both models share the same ADPV technology, refractory stone belt, touchscreen interface, and stacking capability, so you get the full Dragon feature set regardless of which size you choose.
Constructed from heavy-gauge stainless steel with fully insulated chamber walls, the Dragon is built to endure the rigors of continuous commercial operation. Internal components are designed for easy access during routine maintenance, and the refractory stone tiles can be individually replaced if damaged, eliminating the need to replace the entire belt assembly. Every unit undergoes comprehensive quality testing at the factory in Italy before shipment, and Gianluca Specialty Imports provides full US-based support including installation guidance, operator training, and access to genuine replacement parts.
Complete specifications across all Dragon Conveyor Oven configurations
| Specification | D24 Electric | D24 Gas | D32 Electric | D32 Gas |
|---|---|---|---|---|
| Internal Width | 24 in (610 mm) | 24 in (610 mm) | 32 in (813 mm) | 32 in (813 mm) |
| Internal Chamber Length | 43.3 in (1100 mm) | 43.3 in (1100 mm) | 43.3 in (1100 mm) | 43.3 in (1100 mm) |
| Internal Chamber Height | 3.5 in (89 mm) | 3.5 in (89 mm) | 3.5 in (89 mm) | 3.5 in (89 mm) |
| External Dimensions (W×D×H) | 37×60×20 in (940×1524×508 mm) | 37×60×22 in (940×1524×559 mm) | 45×60×20 in (1143×1524×508 mm) | 45×60×22 in (1143×1524×559 mm) |
| Weight (approx.) | 330 lbs (150 kg) | 350 lbs (159 kg) | 395 lbs (179 kg) | 420 lbs (191 kg) |
| Power (kW) | 10.5 kW | 1.2 kW (ignition/controls) | 14.4 kW | 1.5 kW (ignition/controls) |
| Voltage | 208/240V 3-phase | 120V single-phase | 208/240V 3-phase | 120V single-phase |
| Current Draw | 30A @ 208V 26A @ 240V | 10A @ 120V | 40A @ 208V 35A @ 240V | 13A @ 120V |
| Recommended Breaker | 40A 3-pole | 15A single-pole | 50A 3-pole | 20A single-pole |
| BTU/h (Gas Models) | — | 45,000 BTU/h | — | 60,000 BTU/h |
| Max Temperature | 840°F (450°C) | 840°F (450°C) | 840°F (450°C) | 840°F (450°C) |
| Conveyor Surface | Refractory Stone | Refractory Stone | Refractory Stone | Refractory Stone |
| Controls | 7″ Touchscreen | 7″ Touchscreen | 7″ Touchscreen | 7″ Touchscreen |
| Stackable | Up to 3 levels | Up to 3 levels | Up to 3 levels | Up to 3 levels |
| Certifications | UL-ETL, NSF, CE | UL-ETL, NSF, CE | UL-ETL, NSF, CE | UL-ETL, NSF, CE |
Estimated pizzas per hour by size and configuration (single deck)
| Pizza Size | D24 (Single Deck) | D24 (Triple Stack) | D32 (Single Deck) | D32 (Triple Stack) |
|---|---|---|---|---|
| 8″ (20 cm) Personal | 180 | 540 | 260 | 780 |
| 10″ (25 cm) Small | 140 | 420 | 200 | 600 |
| 12″ (30 cm) Medium | 100 | 300 | 150 | 450 |
| 14″ (35 cm) Large | 70 | 210 | 110 | 330 |
| 16″ (40 cm) Extra Large | 50 | 150 | 80 | 240 |
* Productivity estimates based on standard bake times and optimal loading patterns. Actual output varies by recipe, topping density, and operator workflow.
Explore more commercial pizza ovens from our Italian partners
Gas Oven
High-temperature gas deck oven · Traditional stone baking
Electric Deck
Electric multi-deck oven · Precision stone baking
Electric Oven
Compact electric oven · Stone-hearth quality
What operators need to know about high-volume stone conveyor baking.
A conveyor oven moves pizza through a heated chamber on a belt. The operator loads a raw pizza at one end, and a finished pizza emerges at the other. There is no door to open, no rotation to manage, no judgment call about when to pull. The bake time is set by the belt speed, and every pizza receives identical heat exposure.
What separates the Dragon from commodity conveyor ovens is the baking surface. Most commercial conveyors use perforated metal belts or wire mesh. The Dragon uses an Italian refractory stone belt — the same material found in traditional Neapolitan deck ovens. This stone surface absorbs and radiates heat the way a traditional hearth does, producing a crust with the char pattern, crispness, and chew that metal belts cannot replicate.
ADPV stands for Adaptive Dynamic Power Variation. In practice, this means the oven continuously adjusts its energy output based on how many pizzas are on the belt and where they are in the baking cycle. During a rush, when the belt is fully loaded, the system increases power to maintain temperature. During slow periods, it reduces consumption to save energy without affecting readiness.
This is not a simple thermostat. The system monitors multiple temperature zones within the chamber and adjusts each independently. The result is consistent bake quality whether you are running one pizza per minute or thirty — the oven adapts to your pace rather than forcing you to adapt to its limitations.
The Dragon is designed to stack up to three levels on a single footprint. Each level operates independently with its own belt speed, temperature settings, and controls. This means you can run Neapolitan-style pizza on level one at 840°F with a short belt time, New York style on level two at a lower temperature with a longer cycle, and flatbreads on level three — all simultaneously.
Maximum throughput depends on pizza size and belt speed. A single Dragon unit with a 32-inch belt running 12-inch pizzas at optimal speed produces approximately 260 pizzas per hour. Stack three levels and the theoretical maximum approaches 780 pizzas per hour from a footprint that is roughly the size of a single traditional deck oven. For high-volume operations — stadiums, university dining, QSR chains — this density of output per square foot is difficult to achieve with any other oven architecture.
The Dragon is available in both electric and gas configurations. Electric models offer more precise temperature control and simpler ventilation requirements — no gas line, no combustion exhaust. Gas models provide faster heat recovery and lower operating costs in markets where natural gas is significantly cheaper than electricity.
Both configurations use the same refractory stone belt and ADPV control system. The choice between them typically comes down to your facility’s utility infrastructure and local energy costs. Our team can help you calculate the operating cost comparison for your specific market and volume.
Each Dragon unit includes a 7-inch touchscreen controller that stores up to 99 baking programs. Operators can set belt speed, top heat, bottom heat, and chamber temperature for each program and recall them with a single touch. This eliminates the training overhead of teaching new staff how to bake different products — select the program and the oven does the rest.
The Industry 4.0 connectivity allows remote monitoring of oven performance, temperature logs, energy consumption, and maintenance alerts. For multi-unit operators, this means visibility into every oven across every location from a single dashboard. Maintenance can be scheduled proactively based on actual usage data rather than arbitrary calendar intervals.
